- Rated Current Range : กพ40 ~ 600[A]
- Frequency Range : 0 ~ 20KHz
Product Features
To be inserted in panel
Outstanding design

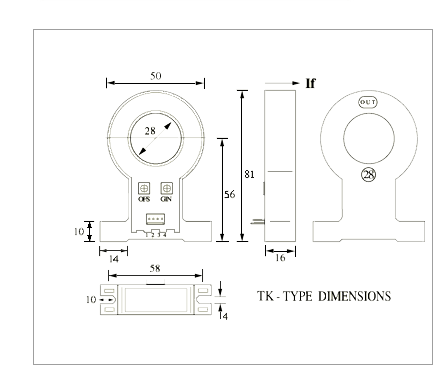

Measuring hole of 28mm in diameter with
diverse heights from 15mm to 56mm from the
bottom to the center28mm Wide range of
application and outstanding quality

Pin Connection

 Standard 1A Arrangement

1. VCC[+V]
2. GND[0V]
3. VEE[-V]
4. OUT[V]

Standard 1S Arrangement

1. VCC[+V]
2. GND[0V]
3. GND[0V]
4. OUT[V]




Standard 2A Arrangement

1. VCC[+V]
2. VEE[-V]
3. OUT[V]
4. GND[0V]

Standard 2S Arrangement

1. VCC[+V]
2. N.C.
3. OUT[V]
4. GND[0V]


  When selecting hall current sensor, choose the external and application circuit specifications first before selecting rated current, output voltage (current) and current sensor power supply to obtain understanding on the types of current sensor more easily. For more details, please contact the Technological Sales Division in our head office.
