- Rated Current Range : กพ40 ~ 500[A]
- Frequency Range : 0 ~ 25KHz
Product Features
To be inserted in panel

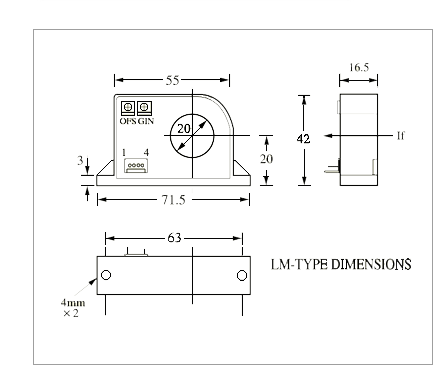

The inside area designed 20mm lower
from the bottom to the center
Wide range of application and outstanding
quality

Pin Connection

Standard 1A Arrangement

1. VCC[+V]
2. GND[0V]
3. VEE[-V]
4. OUT[V]

Standard 1S Arrangement

1. VCC[+V]
2. GND[0V]
3. GND[0V]
4. OUT[V]




Standard 2A Arrangement

1. VCC[+V]
2. VEE[-V]
3. OUT[V]
4. GND[0V]

Standard 2S Arrangement

1. VCC[+V]
2. N.C.
3. OUT[V]
4. GND[0V]


  When selecting hall current sensor, choose the external and application circuit specifications first before selecting rated current, output voltage (current) and current sensor power supply to obtain understanding on the types of current sensor more easily. For more details, please contact the Technological Sales Division in our head office.
T. (053) 856 - 8561
